Frequently Used Embossed Surface Color Coated Aluminum Coil
The common embossed surfaces of color-coated aluminum coils including orange peel,
diamond pattern, and mesh pattern, along with their key features and applications:

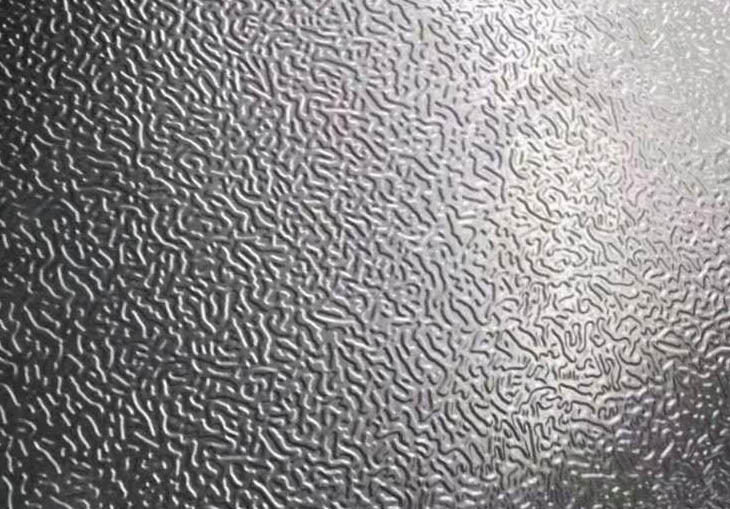

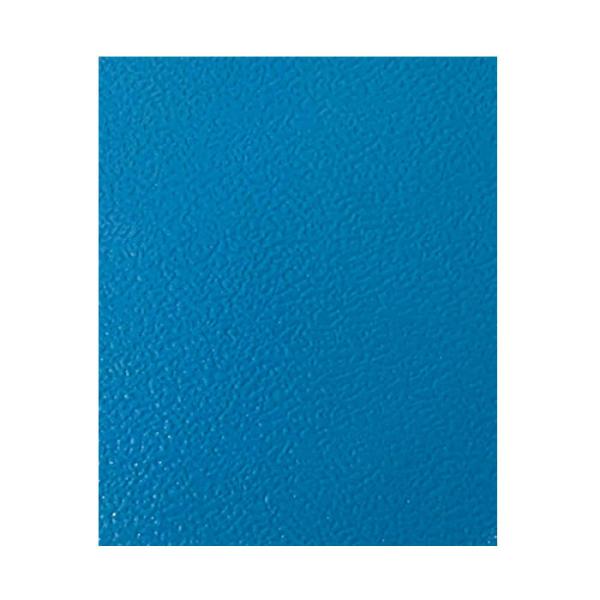

♦ Orange Peel (stucco surface)
a) Characteristics:
Fine, irregular texture resembling orange peel.
Anti-slip and scratch-concealing properties.
Smooth tactile feel with a matte appearance.
b) Typical Specs:
Depth: 0.1–0.3 mm (adjustable).
c) Applications:
Architectural cladding, ceiling panels, home appliances (e.g., refrigerators, AC units).
Vehicle interiors, elevator panels (where aesthetics and durability are required).

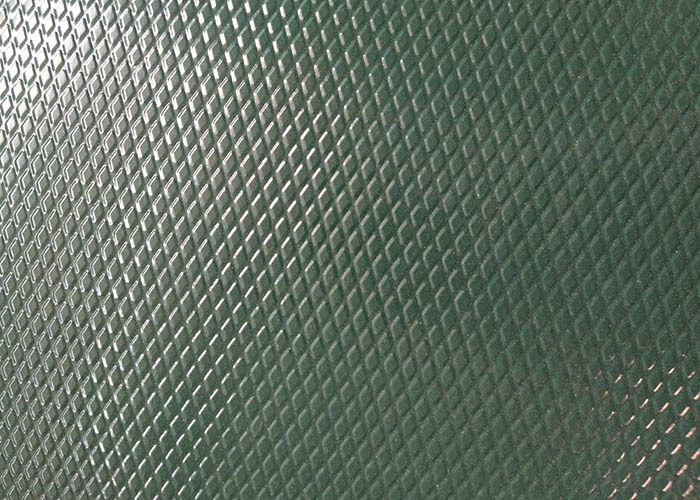

♦ Diamond Pattern
a) Characteristics:
Uniform diamond-shaped raised texture for enhanced grip.
Improves structural rigidity and hides surface imperfections.
Highly durable against abrasion and impact.
b) Typical Specs:
Diamond size: 5×5 mm to 20×20 mm (customizable).
Depth: 0.2–0.5 mm.
c) Applications:
Industrial flooring, walkways (factories, warehouses).
Truck/trailer floors, shipping containers (high-wear environments).
♦ Mesh Pattern
a) Characteristics:
Crosshatched grid-like texture for maximum slip resistance.
Available in fine or coarse designs (coarser = higher friction).
Masks welding seams and surface defects.
b) Typical Specs:
Grid density: 10–30 lines/cm (customizable).
Depth: 0.3–0.8 mm (deeper for heavy-duty use).
c) Applications:
Marine decks, oil rigs (anti-slip + corrosion resistance).
Machinery covers, toolboxes (scratch-resistant industrial uses).
Our Company Advantages and Production Range
Advanced Equipment
• German SMS Group fully automated coating lines with ±0.01mm thickness precision,
Line Speed: 120m/min (20% faster than industry average)
• MES system enables real-time production monitoring with ≥99.3% product qualification rate
• Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy
Technology Patents
♦ Anti-Static Color Aluminum Coil and Continuous Production System
♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
♦ Production Process for High Solar-Reflectance Color Aluminum Coils
♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
♦ Low-Temperature Curing Technology
| Thickness Range | 0.20 - 5.0mm |
| Width Range | Max. 2700mm |
| Alloy | 1050,1060, 3003, 3004,3105,5052 |
| Paint System | PE, SMP, PVDF |
| Color Options | RAL color or as the sample |
|
|

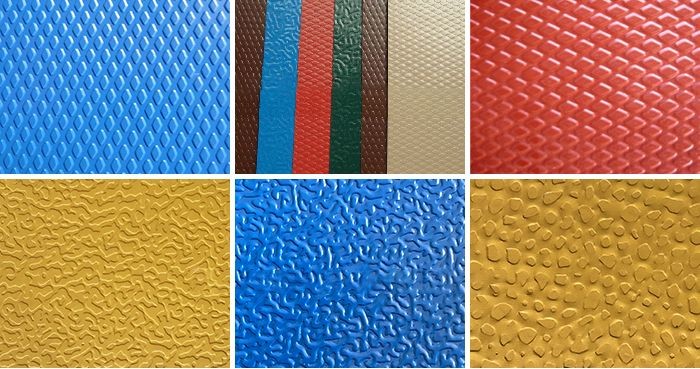

Frequently Used Embossed Surface Color Coated Aluminum Coil Images
|
